calcite powder grinder machine

calcite powder grinder has simple structure, low power consumption, high efficiency, convenient installation and maintenance, no blade feeding in the mill, and low failure rate. It has the advantages of low noise, low vibration, low investment cost, high pressure, and more fine powder.

Product Details

Performance characteristics of calcite powder grinder machine

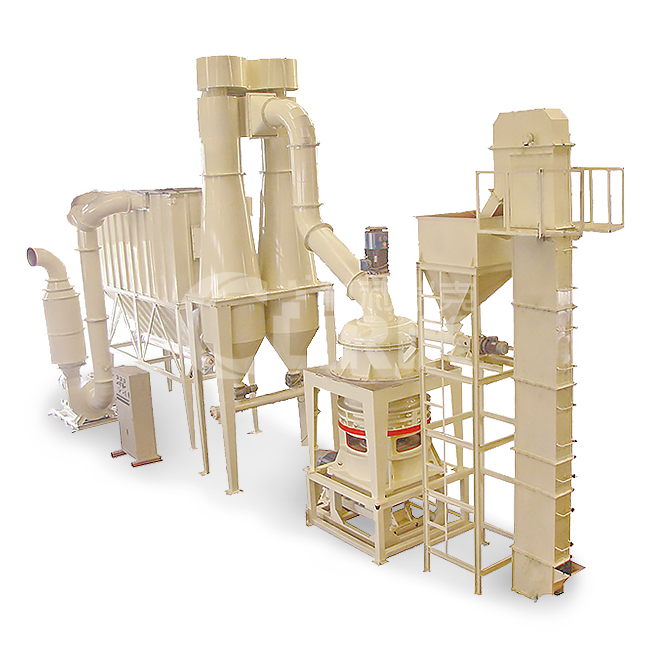

The complete configuration of calcite powder grinder machine includes hammer crusher, bucket elevator, storage bin, vibrating feeder, micro-grinding host, frequency conversion classifier, double cyclone dust collector, pulse dust removal system, high pressure fan, air compression Machine and electrical control system.


Simple structure, low power consumption, high efficiency, convenient installation and maintenance, no blade feeding in the mill, and low failure rate. It has the advantages of low noise, low vibration, low investment cost, high pressure, and more fine powder.


The calcite powder grinder machine is mainly suitable for the ultrafine powder processing of non-flammable and explosive brittle materials with medium and low hardness, Mohs hardness ≤6, such as calcite, chalk, limestone, dolomite, carbon black, kaolin, and bentonite , Talc, mica, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, phosphate rock , Potash ore, pumice stone and other more than 100 kinds of materials, fine powder finished product particle size can be adjusted between 325-3000 mesh arbitrarily, the output can reach 0.4-4.5 tons per hour.

powder grinder

Calcite grinding process


Calcite powder processing is generally divided into calcite coarse powder processing (0-3MM), fine powder processing (20 mesh-400 mesh), and ultra-fine powder processing of calcite (400 mesh-1250 mesh) and fine powder processing (1250 mesh-3250 mesh).


• First: broken

The large calcite material is crushed by the crusher to the fineness (15mm-50mm) that can enter the mill.

• Second: milling

The crushed calcite pieces are sent to the silo by the elevator, and then sent to the grinding chamber of the mill evenly and quantitatively by the vibrating feeder for grinding.

• Tthird: classification

The ground material is classified by the classifier, and the unqualified powder is classified by the classifier and then returned to the host for re-grinding.

• Fourth: collecting powder

The powder that meets the fineness is separated and collected in the dust collector through the pipeline through the airflow. The collected product powder is sent to the finished product silo through the discharge port by the conveying device, and then is packaged by a powder tanker or an automatic baler.

powder grinder process



The working principle of calcite powder grinder machine


When working, the main motor of the grinding equipment drives the main shaft and the turntable to rotate through the reducer, and the roller pins on the edge of the turntable drive dozens of grinding rollers to roll in the grinding ring raceway. The calcite raw mineral material is crushed into small particles by a hammer crusher, and then sent to the storage bin by the elevator, and then sent through the vibrating feeder and the inclined feeding pipe to evenly send the calcite particles to the bulk tray on the upper part of the turntable . After three layers of loops are processed into calcite powder, the high-pressure fan sucks outside air into the machine through suction, and brings the crushed calcite powder into the classifier. After regrinding, the fine powder that meets the requirements enters the cyclone powder collector with the airflow and is discharged by the discharge valve at the bottom of the cyclone powder collector, which is the final ultrafine calcite powder. The airflow with a small amount of fine dust is purified by the pulse dust collector and then passed through the fan. And muffler discharge.


powder grinder working principle



Maintenance of calcite powder grinder machine


1. During the use of the pulverizer, there should be a fixed person responsible for supervision, and the operator must have a certain technical level. Before installing the pulverizer, the operator must have the necessary technical training to make them understand the principle and performance of the pulverizer, and be familiar with the operating procedures.


2. In order to make the mill normal, the "equipment maintenance and safe operation system" should be formulated to ensure the long-term safe operation of the mill, and the necessary maintenance tools, grease and corresponding accessories should be provided.


3. The pulverizer should be overhauled after a period of use. At the same time, the wearing parts such as the grinding roller, grinding ring, blade, etc. should be overhauled and replaced. The connecting bolts and nuts of the grinding roller device should be carefully checked before and after use to see if there is any looseness. , Whether to add enough lubricating grease.


4. When the grinding roller device of the calcite mill is used for more than 500 hours to replace the grinding roller, the rolling bearings in the roller sleeve must be cleaned, and the damaged parts should be replaced in time. The refueling tool can be a manual refueling pump and a grease gun.





Parameters of HGM series ultrafine mill
Model HGM80 HGM80A HGM90L HGM100L-Ⅱ HGM100P HGM125L HGM1680L
Ring Diameter(mm) 800 800 900 1000 1000 1250 1680
Ring Number (PCS) 3 3 4 4 4 4 4
Input Size (mm) ≤10 ≤10 ≤10 ≤15 ≤15 ≤20 ≤20
Adjustable range of finished product (mesh) 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000
Capacity (t/h) 0.5-5.5 0.5-5.5 0.8-6.5 1.2-10 1.2-11 2.5-20 5-45
Outlet Size L*W*H (mm) 8605*4139*6050 10454*3393*6626 11735*3952*7525 14507*3633*7562 14362*4200*7562 19261*4406*8591 25067*5414*9007
Main motor power (kw) 75 75 55*2 132/75*2 132/75*2 185 315
