YGM9517 Raymond Powder Grinder

Introduce of YGM9517 powder grinder; YGM9517 micro powder grinder; YGM9517 powder grinder series: The finished size:30-425mesh The capacity:2.1-5.6t/h Working Principle of YGM9517 powder grinder; YGM9517 micro powder grinder; YGM9517 powder

Product Details

Introduce of YGM9517 powder grinder; YGM9517 powder grinder series:

The finished size:30-425mesh
The capacity:2.1-5.6t/h
Working Principle of YGM9517 powder grinder;YGM9517 powder grinder series :

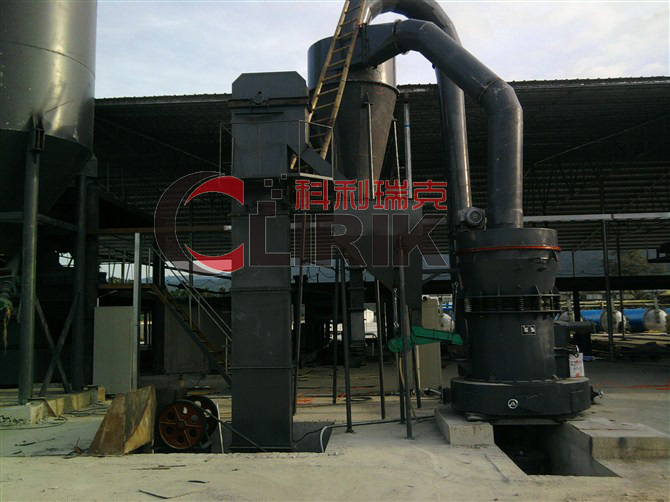

Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. The grinded powder are carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, and are separated and collected there. They are discharged at the discharging valve to become finished products; the airflow is sucked to the blower by return pipe on the top of cyclone collector. The whole airflow system is a sealed circulation, and is circulated under positive and negative air pressure.

YGM9517 powder grinder; YGM9517 powder grinder series is suitable for processing various non-flammable and non-explosive mineral materials with Moh’s hardness less than 9.3 and humidity less than 6%, it is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc,. The granularity of the finished powder size can be adjusted between 50 and 325 mesh (315-45 micron). Examples of processing materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic, iron ore, carborundum, bauxite, rock phosphate, coal and other materials, total about 400 kinds of materials.


Detail Specification of YGM9517 powder grinder; YGM9517 powder grinder series:


Model Roller Ring Feeding
Size
(mm)
Finished
Size
(mm)
Mill
System
Power
(KW)
Capacity
(t/h)
Overall
Dimension
(mm)
Quantity
(piece)
Diameter
(mm)
Height
(mm)
Inner
Diameter
(mm)
Height
(mm)
YGM7815 3 260 150 780 150 15 0.613-0.033 35.7 1-3 4300*3500*5100
YGM9517 4 310 170 950 170 25 0.613-0.033 72.65 2.1-5.6 7100*5900*7900
YGM1280 3 370 240 1170 240 20 0.613-0.033 145.15 4.5-12 9300*5600*8200
YGM1300 4 410 280 1270 280 20 0.613-0.033 202.15 6.5-16 9100*8200*8400
YGM1620 4 450 300 1500 300 20 0.613-0.033 322.2 8-20 12500*5700*10500
YGM1720 4 510 300 1720 300 35 0.613-0.033 450 10.5-28 11550*9500*10500

Note: This specification is just referencing, any changes are subject to the products.


Working Features of YGM9517 powder grinder;  YGM9517 powder grinder series:
YGM9517 powder grinder; YGM9517 powder grinder series
has the similar working principle as Raymond mill, but its grinding device is fixed with 1000-1500kg pressure springs. When the machine works the grinding roller , which under the action of high pressure spring and centrifugal force, rolls close up to grinding ring, its rolling pressure is 1.2 times higher than that of Raymond mill given an identical condition and its capacity increase 20% to 30%; When the grinding roller and grinding ring, stable capacity and fineness are guaranteed.

SHANGHAI CLIRIK MACHINERY CO., LTD is specializing in research, manufacture and sales of all kinds of powder grinder. Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service we always follow your steps, pursue your value and achieve your benefit.



Hot Tags: YGM9517 Raymond Powder Grinder manufacturers, YGM9517 Raymond Powder Grinder suppliers, YGM9517 Raymond Powder Grinder factory, YGM9517 Raymond Powder Grinder for sale, YGM9517 Raymond Powder Grinder price

Company strength

SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.

So far, we have established a whole production chain, the products covermicro powder grinding mill, high pressure grinding mill, European version coarsegrinding mill, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on. They are widely used in the industry of mining, construction materials, chemicals, metallurgy, transportation, hydraulic engineering and so on. Specially we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.

We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front. Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers not only the highest quality products at the most favorable price but also the most reasonable solution, such as the selection of the equipment,optimized process configuration and a full range of technical support, therefore we always follow your steps, pursue your value and achieve your benefit.
